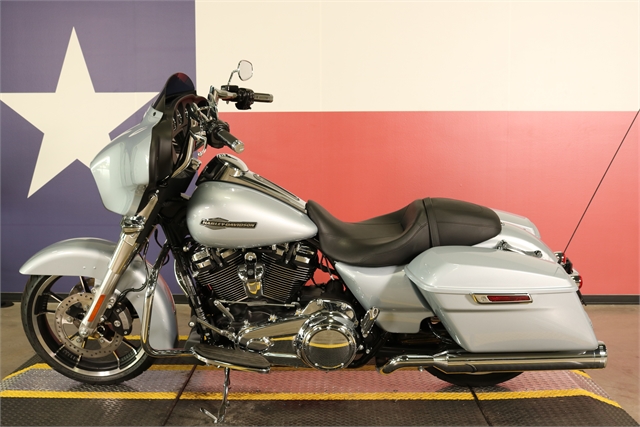

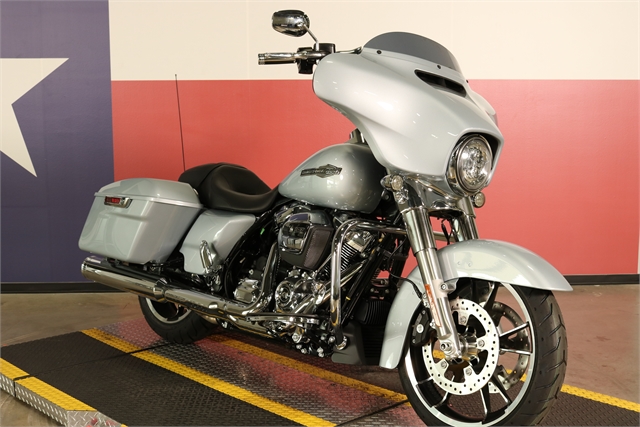

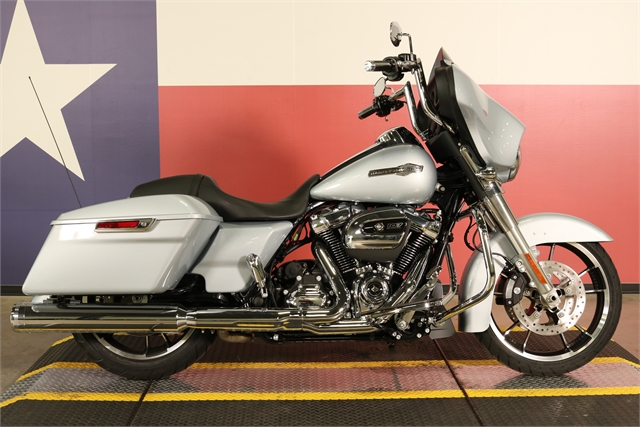

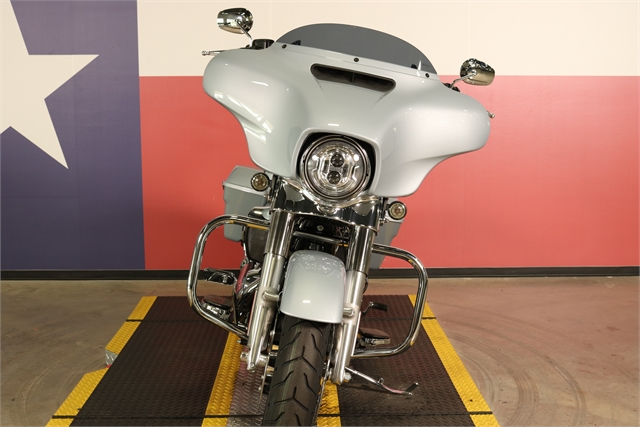

2023 Harley-Davidson Street Glide

Stock #605014

145 people have recently viewed it.
Check Availability
Hi, my name is and I'm interested in this 2023 Harley-Davidson Street Glide . I'm in the area and you can reach me at or by phone at

This brand new Street Glide comes customized with Factory 47 12" bars, Rinehart 4.5" exhaust, Day Maker headlight, and more! For more information call 817-267-2646

  • Status:
    New
  • Vehicle:
    2023 Harley-Davidson Street Glide
  • VIN:
    1HD1KBC15PB605014
  • Model Number:
    FLHX
  • Mileage:
    7 miles
  • Color:
    Atlas Silver Metallic
  • Stock Number:
    605014
  • Location:
    Texas Harley
  • Warranty:
    Manufacturer's w/ Extended Available

AUDIO & COMMUNICATION

  • Bluetooth® Audio:
    Yes
  • Brand Name:
    Boom!™ Box 4.3
  • Number Of Speakers:
    2

BRAKES

  • Brake Brand Name:
    Brembo®
  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Type:
    Hydraulic Disc

CONVENIENCE

  • Engine Immobilizer Brand:
    Digitally Encoded Security System™ (DESS)

ENGINE

  • Bore (in):
    3.94
  • Bore (mm):
    100
  • CAN Liters Per Kilometer (Combined):
    5.5
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    10.0
  • Cooling:
    Oil
  • Cylinders:
    2
  • Displacement (cc):
    1746
  • Displacement (ci):
    107
  • Engine Brand Name:
    Milwaukee-Eight™ 107
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    V Twin
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Premium
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    4.38
  • Stroke (mm):
    111.1
  • Torque (Ft Lbs):
    111
  • Torque (Nm):
    150.5
  • Torque RPM:
    3250
  • US Miles Per Gallon (Combined):
    43
  • Valve Configuration:
    OHV - Pushrod
  • Valves Per Cylinder:
    4
  • Valves:
    8

EXTERIOR

  • Body Material:
    Steel
  • Chassis Protectors:
    Yes
  • Engine Case Guard:
    Yes
  • Floor Board Location:
    Driver
  • Foot Peg Location:
    Passenger
  • Fork Guards:
    Yes
  • Frame:
    Steel
  • Hand Guards:
    Yes
  • Side Cover:
    Yes
  • Stand Type:
    Kick

GLASS

  • Height:
    Low
  • Tinted:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge

LIGHTS

  • Type:
    Halogen

SEATS

  • Number Of Seats:
    2
  • Seat Height (in):
    27.4
  • Seat Height (mm):
    695
  • Seat Location:
    Driver and Passenger
  • Seat Material:
    Leather
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar

STORAGE

  • Location:
    Left and Right Side
  • Number Of Side Cases:
    2
  • Side Case Material:
    Vinyl

SUSPENSION

  • Air Adjustable:
    Yes
  • Front Adjustable Rebound Damping:
    Yes
  • Front Suspension Size (in):
    1.9
  • Front Suspension Size (mm):
    49
  • Front Suspension Type:
    Telescopic Fork
  • Number Rear Shock Absorbers:
    2
  • Rear Adjustable Rebound Damping:
    Yes
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Twin Sided Swing Arm
  • Steering Damper:
    Yes

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    361
  • Dry Weight (lbs):
    796
  • Engine Displacement to Weight (cc):
    2.19
  • Fuel Capacity (gal):
    6
  • Fuel Capacity (l):
    22.7
  • Ground Clearance (in):
    5.3
  • Ground Clearance (mm):
    135
  • GVWR (kgs):
    617
  • GVWR (lbs):
    1360
  • Height (in):
    53.1
  • Height (mm):
    1350
  • Length (ft):
    8.04
  • Length (ft/ft):
    8
  • Length (ft/in):
    0.5
  • Length (in):
    96.5
  • Length (mm):
    2450
  • Payload Capacity (kgs):
    241
  • Payload Capacity (lbs):
    531
  • Storage Capacity (cuft):
    2.3
  • Storage Capacity (gal):
    14.8
  • Storage Capacity (l):
    65.1
  • Wet Weight (kg):
    376
  • Wet Weight (lbs):
    829
  • Wheelbase (in):
    64
  • Wheelbase (mm):
    1625
  • Width (in):
    37.8
  • Width (mm):
    960

TRANSMISSION

  • Gear Ratio (1):
    9.593
  • Gear Ratio (2):
    6.65
  • Gear Ratio (3):
    4.938
  • Gear Ratio (4):
    4
  • Gear Ratio (5):
    3.407
  • Gear Ratio (6):
    2.875
  • Number Of Speeds:
    6
  • Primary Drive (Engine / Transmission):
    Chain
  • Primary Drive (Rear Wheel):
    Belt
  • Transmission Brand:
    Six-Speed Cruise Drive®
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Front Tire (Full Spec):
    Dunlop® Harley Davidson Series 130/60 R19 61H
  • Front Tire Aspect Ratio:
    60
  • Front Tire Speed Rating:
    H
  • Front Tire Width:
    130
  • Front Wheel Diameter:
    19
  • Rear Tire (Full Spec):
    Dunlop® Harley Davidson Series 180/55 R18 80H
  • Rear Tire Aspect Ratio:
    55
  • Rear Tire Speed Rating:
    H
  • Rear Tire Width:
    180
  • Rear Wheel Diameter:
    18
  • Tire Brand:
    Dunlop®
  • Wheels Composition:
    Aluminum
